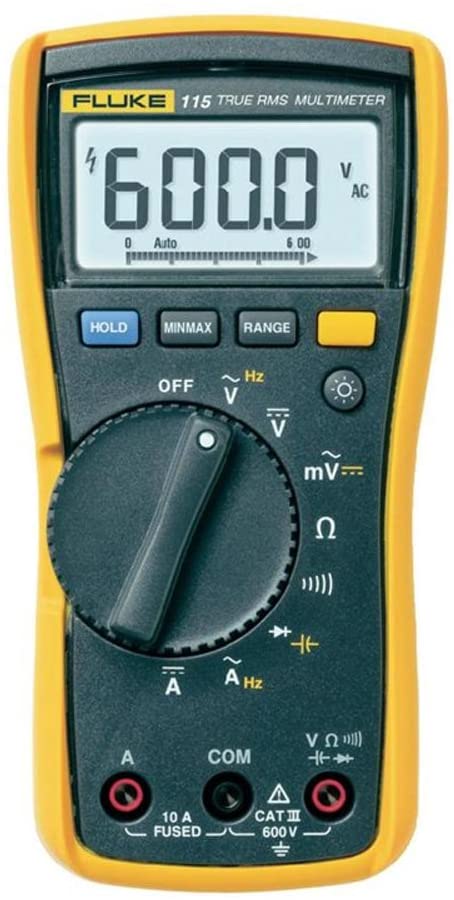

Fluke 115 Field Technicians Digital Multimeter Compact True-RMS Model: 115

Category: Building Materials
SKU: 01043
Seller: Kings Trading
For Visa/Mastercard 10% Discount( Upto tk500)
Tk 29500
0 review(s)

Call For Order : 09613-800800

Fluke 115 Field Technicians Digital Multimeter Compact
true-rms meter for field service technicians

The Fluke 115 field technician’s digital multimeter measures
True-rms voltage and current with plus resistance, continuity, frequency, and
capacitance to meet the needs of a wide variety of field service technicians.

The 115 digital multimeter offers the users one-handed operation
and a backlit display. The large, easy-to-read digits offer a 6000-count
resolution. The 115 provides Min/Max/Average with elapsed time to record signal
fluctuations. It also measures:

  • AC and DC voltage to 600V,
  • AC and DC current to 10 A (20 A overload for 30-seconds max).

Specifications: Fluke 115 Field Technicians Digital Multimeter

Fluke 115 Specifications

DC Millivolts
Range600 mV
Resolution0.1 mV
Accuracy0.5% + 2

DC Volts
Range6 V60 V600 V
Resolution0.001 V0.01 V0.1 V
Accuracy0.5% + 2

Auto Volts
Range600 V
Resolution0.1 V
Accuracy2.0% + 3 (dc 45 to 500 Hz)4.0% + 3 (500 Hz to 1kHz)

AC Millivolts1 True RMS
Range600 mV
Resolution0.1 mV
Accuracy1.0% + 3 (dc 45 to 500 Hz)2.0% + 3 (500 Hz to 1kHz)

AC VoltsTrue RMS
Range6 V60 V600 V
Resolution0.001 V0.01 V0.1 V
Accuracy1.0% + 3 (dc 45 to 500 Hz)2.0% + 3 (500 Hz to 1kHz)

Continuity
Range600 Ω
Resolution1 Ω
AccuracyBeeper on <20 off> 250; detects opens or shorts of 500 µs or longer

Ohms
Range600 Ω6 kΩ60 kΩ600 kΩ6 MΩ40 MΩ
Resolution0.1 Ω0.001 kΩ0.01 kΩ0.001 MΩ0.01 MΩ
Accuracy0.9% + 20.9% + 15% + 2

Diode Test
Range2 V
Resolution0.001 V
Accuracy0.9% + 2

Capacitance
Range1000 nF10 µF100 µF9999 µF100 to 1000 µF>1000 µF
Resolution1 nF0.01 µF0.1 µF1 µF
Accuracy1.9% + 21.9% + 25% + 20

Lo-Z capacitance
Range1 nF to 500 µF
Accuracy10% + 2 typical

AC Amps True RMS (45 to 500 Hz)
Range6 A10 A20 A overload for 30 seconds max
Resolution0.001 A0.01 A
Accuracy1.5% + 3

DC Amps
Range6 A10 A20 A overload for 30 seconds max
Resolution0.001 A0.01 A
Accuracy1.0% + 3

Hz (V or A Input)
Range99.99 Hz999.9 Hz9.999 kHz50.00 kHz
Resolution0.01 Hz0.1 Hz0.001 kHz0.01 kHz
Accuracy0.1% + 2
