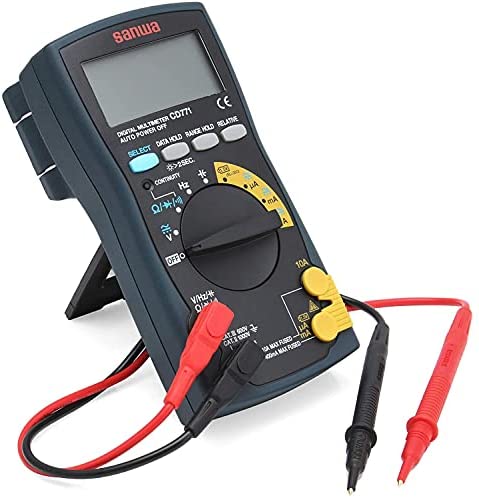

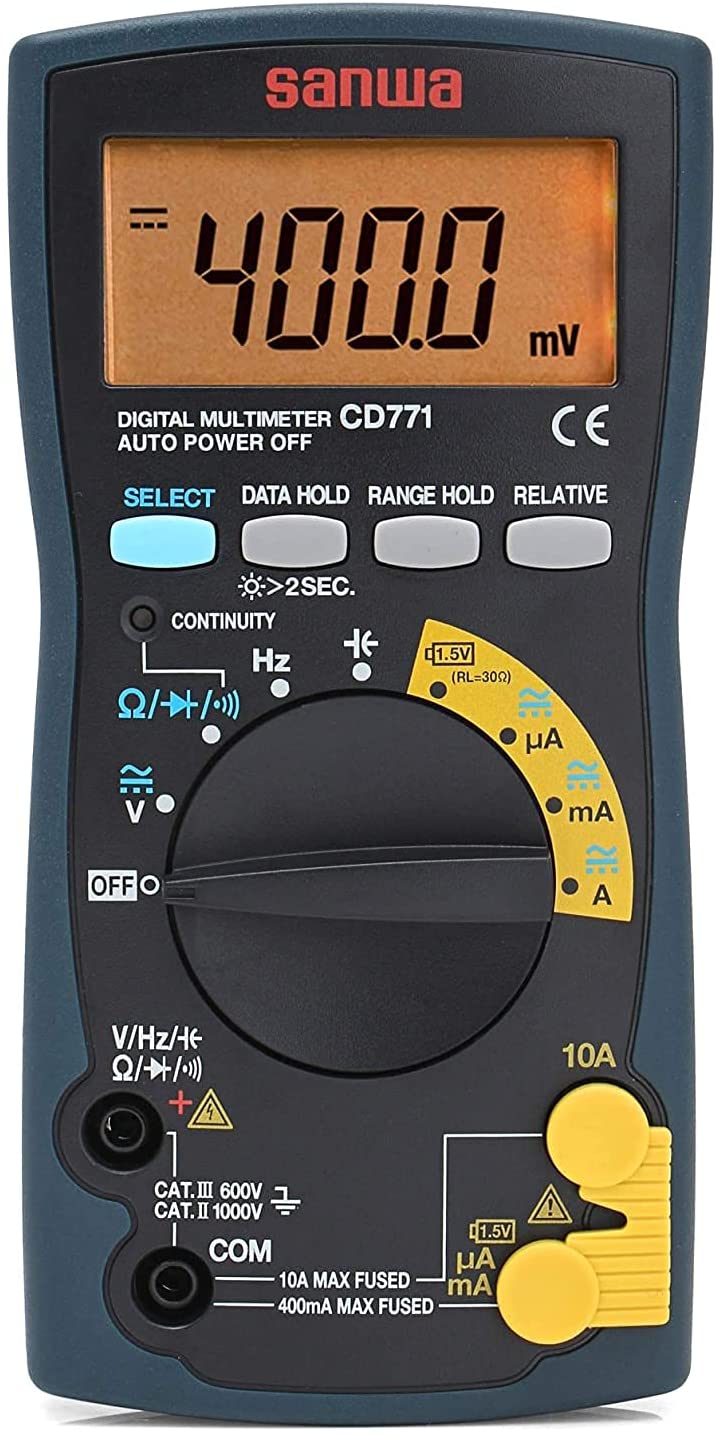

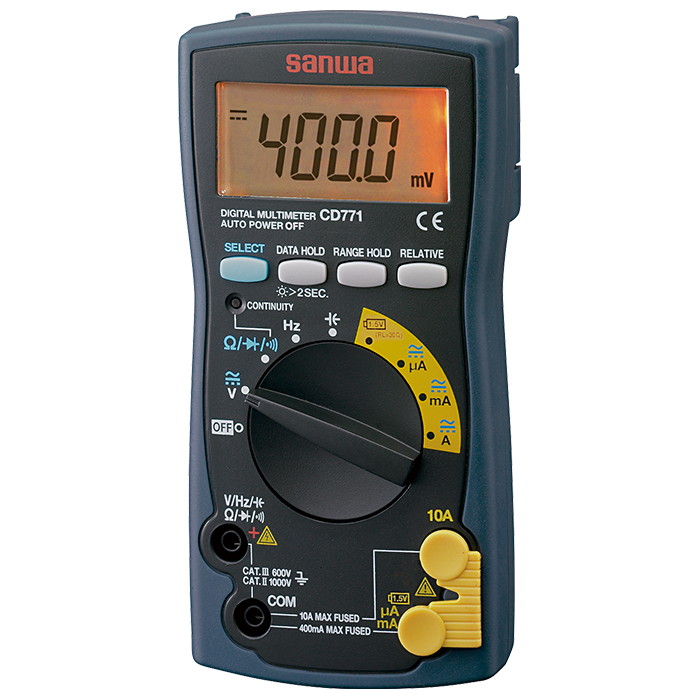

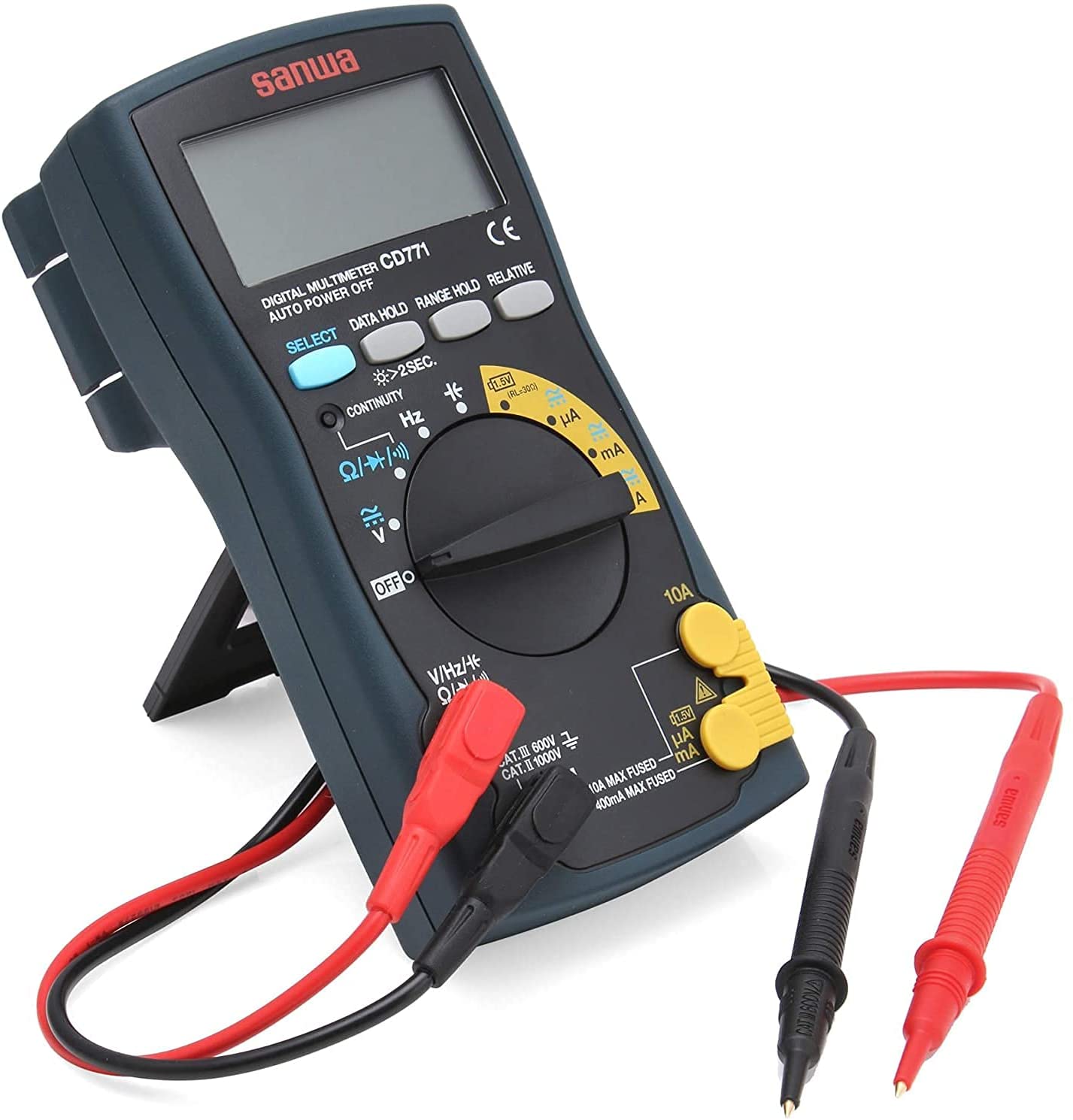

Sanwa CD771 Digital Multimeter Backlight & Cont. buzzer with LED

Name: Sanwa CD771 Digital Multimeter Backlight & Cont. buzzer with LED
SKU: 01085
Price: 9500.00 BDT
Availability: InStock

Category: Building Materials

SKU: 01085

Seller: Kings Trading

For Visa/Mastercard 10% Discount( Upto tk500)

Tk 9500


DCV	400m/4/40/400/1000V	±(0.5%+2)	0.1mV	10M～100MΩ
ACV	4/40/400/1000V	±(1.2%+7)	0.001V	10M～11MΩ
DCA	400μ/4000μ/40m/400m/4/10A	±(1.4%+3)	0.1μA
	ACA	400μ/4000μ/40m/400m/4/10A	±(1.8%+5)	0.1μA
	Resistance	400/4k/40k/400k/4M/40MΩ	±(1.2%+5)	0.1Ω
	Capacitance	50n/500n/5μ/50μ/100μF	±(5%+10)	0.01nF
	Frequency	5/50/500/5k/50k/100kHz	±(0.3%+3)	0.001Hz
			Continuity	Buzzer sounds and LED lights up at between 0Ω and 85Ω（±45Ω）. Open voltage:Approx.0.4V
			Diode test	Open voltage:approx.1.5V
			Battery Check	Approximate value（30Ω load）1.5V battery only

Display	numeral display 4000
Sampling rate	3 times/sec.
Bandwidth	40～400Hz（Sine wave)
Fuse	0.5A/1000V 30kA Φ6.35×32mm 10A/1000V 30kA Φ10×38mm
Battery	R6Px2
Battery life	Approx.400h (manganese battery) at DCV range
Size/Mass	H166×W82×D44mm/360g
Safety	IEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V
