Smoke Sensor Module (MQ-2)

The resistance of the sensor is different depending on the type of the gas.The smoke sensor has a built-in potentiometer that allows you to adjust the sensor digital output (D0) threshold. This threshold sets the value above which the digital pin will output aLOWsignal.

What is an MQ-2 Smoke Sensor?

The MQ-2 smoke sensor is sensitive to smoke and to the following flammable gases:

• LPG

• Butane

• Propane

• Methane

• Alcohol

• Hydrogen

The resistance of the sensor is different depending on the type of the gas.

The smoke sensor has a built-in potentiometer that allows you to adjust the sensor sensitivity according to how accurate you want to detect gas.

MQ-2 sensor

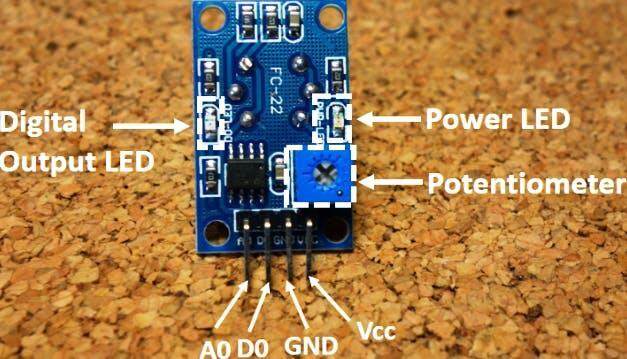

Sensor Pin-out details

How does it Work?

The voltage that the sensor outputs changes accordingly to the smoke/gas level that exists in the atmosphere. The sensor outputs a voltage that is proportional to the concentration of smoke/gas.
