UNI-T Function Generators UTG 9010C

UTG 9000C series function generators can produce sine, square, triangle, pulse and saw tooth waveforms etc. The frequency range is wide and the highest value can be 10MHz. The DC level and duty ratio are adjustable. Some other features are VCF, TTL level output and display of output signal, amplitude and frequency at the sametime. They can simply be used as a frequency meter in outside testing. With excellent amplitude and frequency characteristics and the rise time of square waveform≤50nS, the electrical specifications reach international standard of the same type products. They are exquisite and can be widely used in factories, schools and R & D institutions.

Features	Range
Model	UTG9010C
Waveforms	Sine, Square, Triangle, Pulse, Sawtooth etc.
Amplitude
Range (no load)	from 1mVpp to 20Vpp
Accuracy	≤±5% (1KHz Triangle 20Vp-p)
Resolultion	0.1mV
Frequency
Range	from 1Hz to 10MHz
Accuracy	≤±1%
Resolultion	1mHz
Output Power	2Wp-p
Output Impedance	50Ω
Attenuator	20dB + 40dB
DC Offset	from -10V to +10V
Display	Frequency: 4-digits-LED, Amplitude: 3-digits-LED
Duty Cycle	from 10% to 90%
Distortion of Sine	≤2% (at 1kHz)
Rise time of Square	≤35ns
VCF	100:1
Frequency Counter
Frequency Range	from 0.2Hz to 10MHz
Amplitude Range	from 0.5Vp-p to 5Vp-p
Input Impedance	10kΩ
General Characteristic
Power	AC 220V，50Hz
Product Color	White and Gray
Product Net Weight	2.5kg
Product Size	320mm × 240mm × 100mm
Standard Accessories	BNC to Alligator Clips, Power Cord
Standard Individual Packing	Gift Box,English Manual

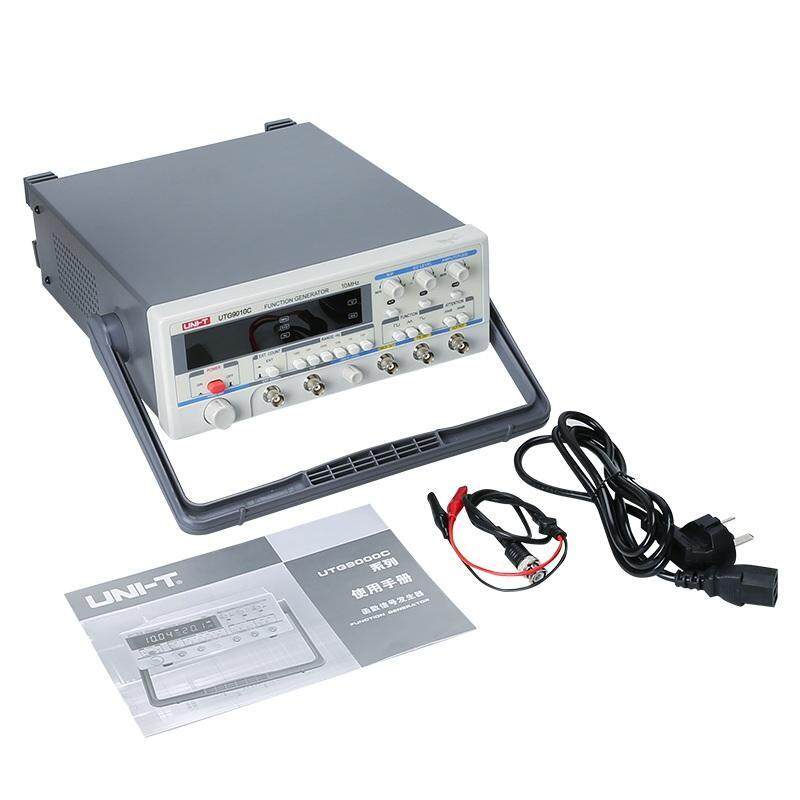

Package Contain:

Function Generators UTG 9010C
BNC to Alligator Clips
Power Cord
English Manual
