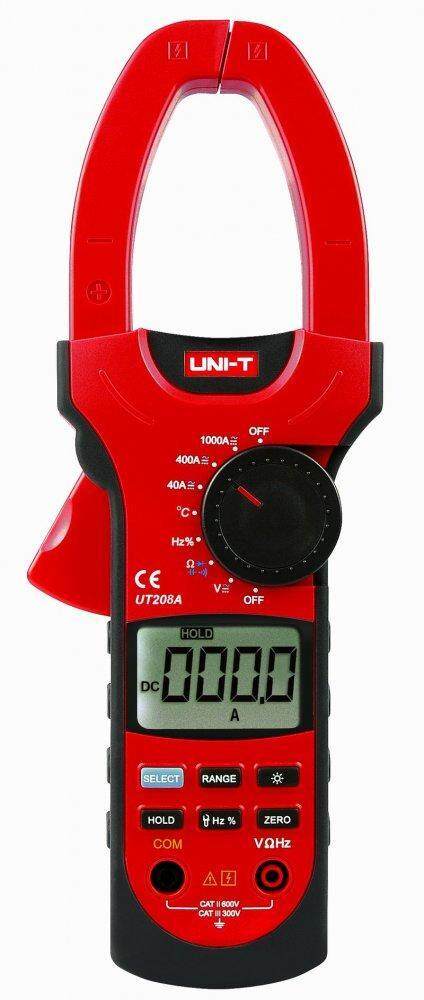

UNI-T Modern Clamp Multimeter UT208A

UNI-T's UT208A is a 1000A auto range digital clamp meter with 4000 display count. It is used to test capacitance, temperature and AC/DC current and voltage.The 1000A AC/DC digital clamp meter is stable, safe and reliable with low power consumption. Its full range overload protection and unique appearance design make it the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC.UT208A is a stable, safe and reliable, low power consumption 3 3/4 AC digital clamp meter. The circuit design is based on the double integral A/D conversion of large scale integrated circuit, full range overload protection and unique appearance design, which becomes more superior performance of electrical instruments. It is suitable for the measurement of AC and DC voltage, AC and DC current, resistance, diode, circuit break, frequency, temperature, capacitance etc. It’s an ideal tool for the maintenance and repair of smelt, manufacturing, petroleum, electric power, chemical industry etc.

Features

• 1000A AC/DC current measurement, 3/s sampling rate
• Zeroing function with relative mode
• LCD backlight
• Data hold
• Auto power off and low battery indication
• K-type temperature probe
• Display Count: 3999
• Auto Range
• Jaw Capacity: 55mm
• Duty Cycle: 0.1%~99.9%
• Diode
• Continuity Buzzer
• LCD Backlight
• Input Impedance for DCV : Around 10MOhm

Specification:

• AC Current 40A/400A/1000A, Acuracy: ±(2%+2)
• DC Current 40A/400A/1000A , Acuracy:±(1.5%+5)
• AC Voltage 400mV/4V/40V/400V/750V, Acuracy:±(1.2%+3)
• DC Voltage 400mV/4V/40V/400V/1000V, Acuracy: ±(0.8%+1)
• Resistance 400Ohm/4KOhm/40KOhm/400KOhm/4MOhm/40MOhm ±(1%+2)
• Capacitance 4nF/40nF/400nF/4µF/40µF/100µF ±(4%+3)
• Frequency 10Hz/100Hz/1KHz/10KHz/1MHz/10MHz ±(0.1%+3)
• Temperature -40 °C ~ 1000°C ±(2.5%+3)
• Jaw Capacity 55mm,Auto Power Off, Continuity Buzzer,Data Hold

General Characteristic

• Power 9V Alkaline Battery(6LF22)
• LCD Size 47mm X 30 mm
• Product Color Red and Grey
• Product Net Weight 533g
• Product Size 286mm X 105mm X45mm

Safety Rating

• CAT II 600V
• CAT III 300V

Certifications

• CE
• EN:61010-1
• EN:61326-1
• EN:61010-2-032

Standard Accessories

• Battery
• Test Lead
• Point Contact Temperature Probe
• English Manual
