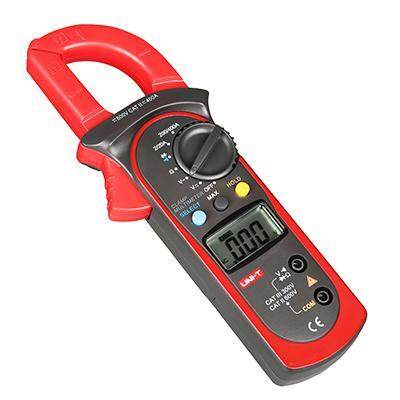

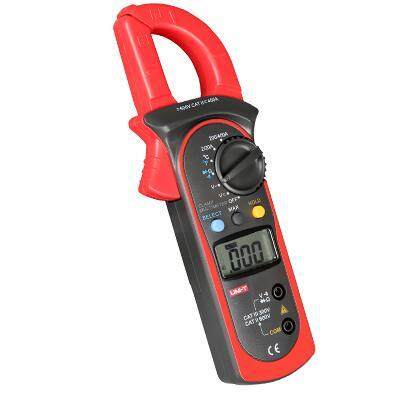

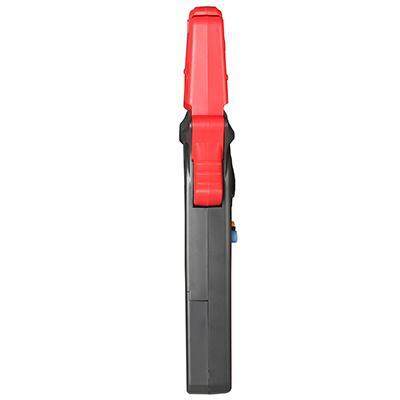

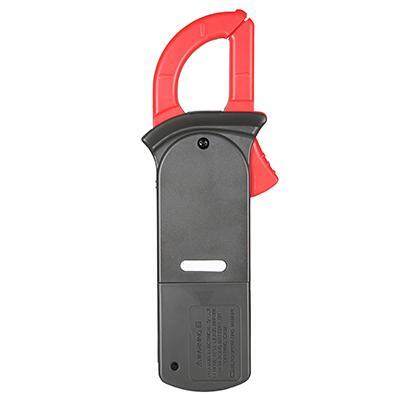

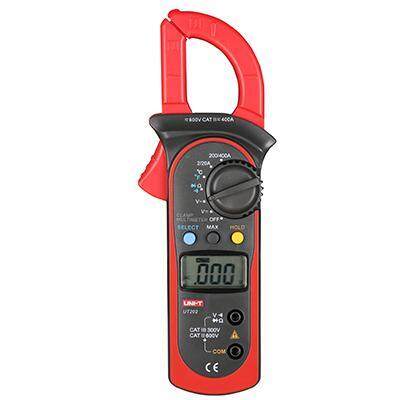

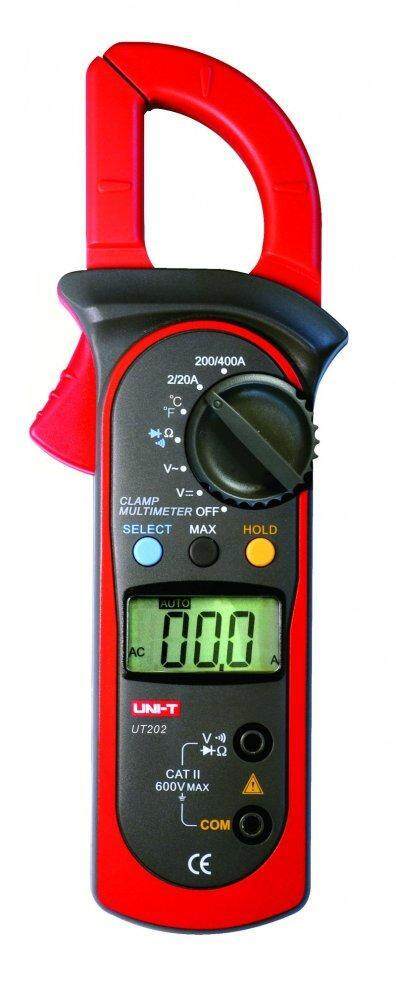

UNI-T UT202 Digital Clamp Meters

Digital clamp meter UNI-T UT202 is a reliable and low consumption AC clamp multimeter. Digital clamp meter UNI-T UT202 measures AC and DC voltage, AC current, resistance and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Features

• Measuring functions:
• AC/DC voltage
• AC current
• Resistance
• Temperature
• Diode check
• Continuity test
• Auto ranging
• Data hold function
• Sleep mode
• Full icon display
• Low battery display
• Maximum value hold
• 28 mm maximum jaw diameter
• Measurement update speed 3 times/second
• Compact and comfortable design
• Compliance with safety requirements IEC61010, CAT II 600 V / CAT III 300 V

SPECIFICATION:

• DC Voltage: 200mV / 2V / 20V / 200V / 600V, Accuracy: +/- (0.8%+1)
• AC Voltage: 2V / 20V / 200V / 600V, Accuracy:+/- (1.2%+5)
• AC Current: 2A / 20A / 200A / 400A,  Accuracy:+/- (1.5%+5)
• Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm, Accuracy: +/- (1%+2)
• Temperature: from -40 to +1000°C, from -40 to +1832°F, Accuracy: +/- 1%+3 (°C), +/- 1%+6 (°F)

GENERAL CHARACTERISTICS:

• Power: 3V bat. (2x AAA)
• Product size: 210 x 75.6 x 30mm
• Product weight: 220g


Package:

• Clamp meter UNI-T UT202 (1 pc.)

• Test lead (1 pc.)

• Point contact temperature probe (1 pc.)

• Carrying case (1 pc.)

• Batteries (1 pc.)

• User manual (1 pc.)
