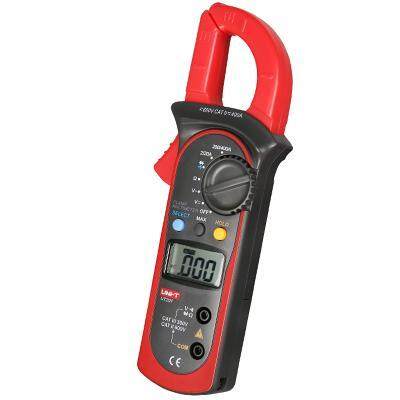

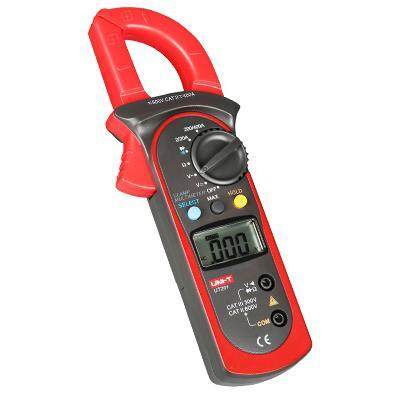

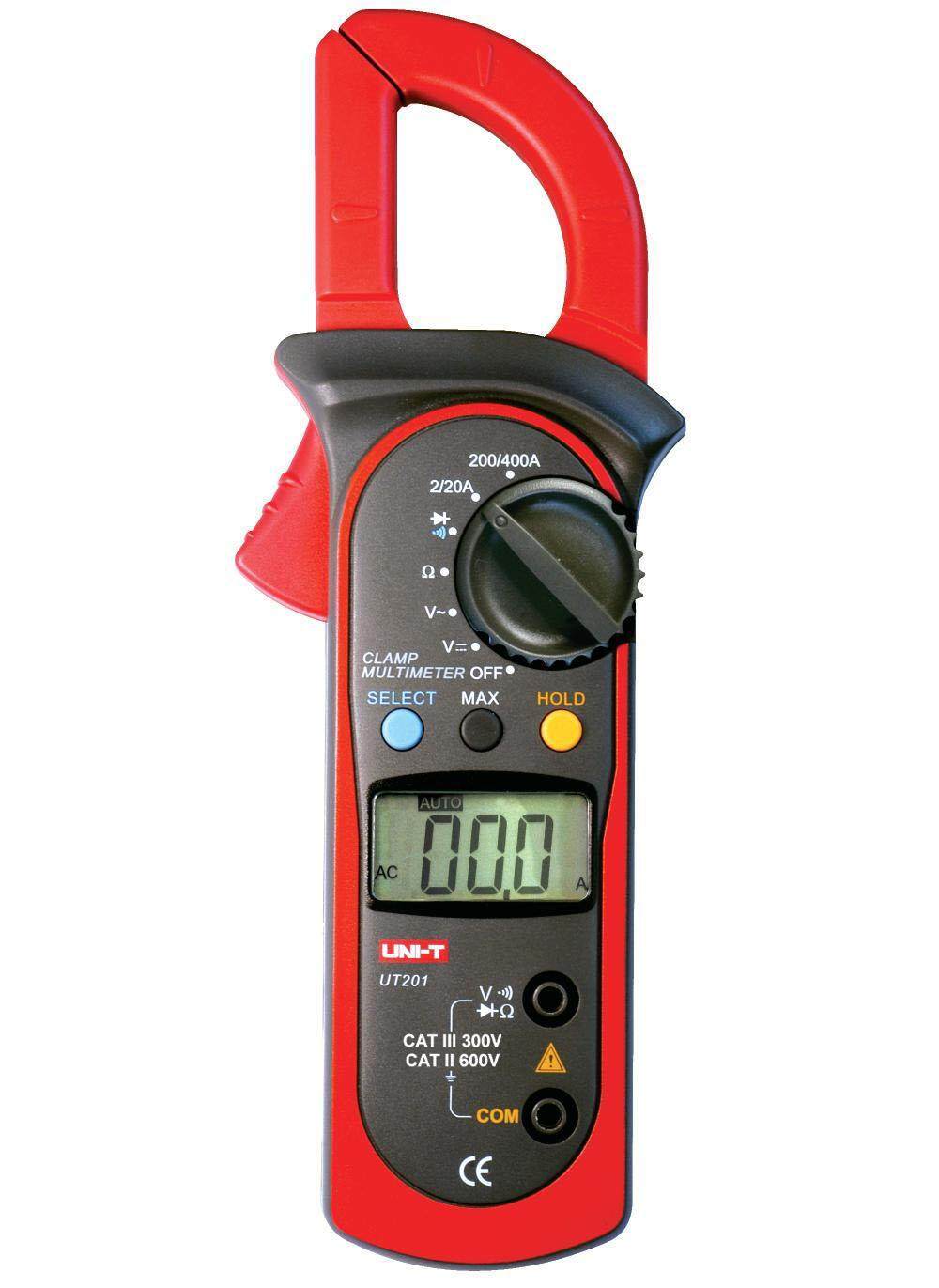

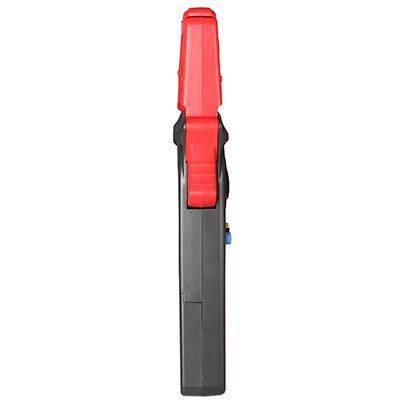

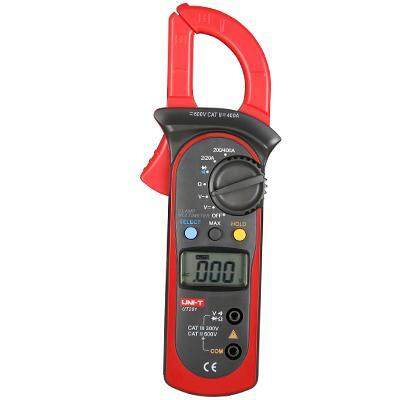

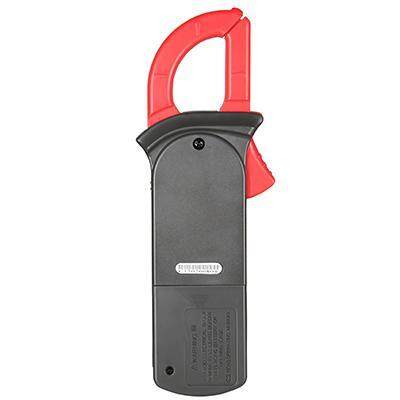

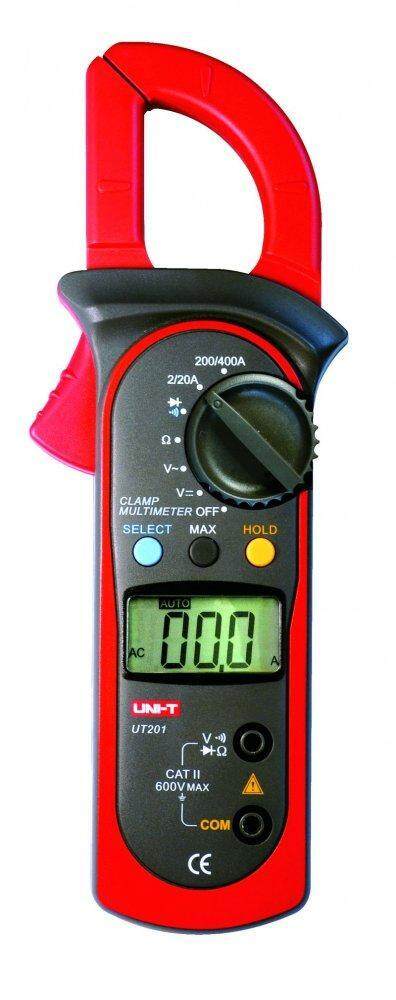

Digital Clamp Multimeter UNI-T UT201

UT201 is a stable, safe and reliable 1999 Digital Clamp Meter. Full range overload protection and unique appearance design, which becomes more superior performance of electrical instruments. It is suitable for smelt, manufacturing, petroleum, electric power, chemical industry etc. It’s an ideal tool for the maintenance and repair of the circuit, power equipment.UNI-T’s UT201 is a 400A auto range digital clamp meter with 2000 display count. It can measure current without disconnecting the circuit.

SPECIFICATION:

• DC Voltage: 200mV / 2V / 20V / 200V / 600V                                                        - best accuracy: +/- (0.8%+1)
• AC Voltage: 2V / 20V / 200V / 600V                                                                      - best accuracy: +/- (1.2%+5)
• AC Current: 2A / 20A / 200A / 400A                                                                       - best accuracy: +/- (1.5%+5)
• Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm     - best accuracy: +/- (1%+2)
• Jaw Capacity : 28mm
• Diode: yes; Data Hold: Yes; Auto Range: Yes
• Relative Mode: Yes; MAX Mode: Yes
• Continuity Buzzer: Yes; Low Battery Indication: Yes
• Full Icon Display: Yes; Input Impedance for DCV: 10MΩ

SPECIAL FUNCTIONS:

• Auto ranging
• Diode
• Continuity buzzer
• Max Hold
• Data Hold
• Full icon display
• Sleep mode
• Low battery display
• Input impedance: 10 MOhm
• Max. display 1999 (35.6 x 18mm)

GENERAL CHARACTERISTICS:

• Power: 3V bat. (2x AAA)
• Product size: 210 x 75.6 x 30mm
• Product weight: 220g
