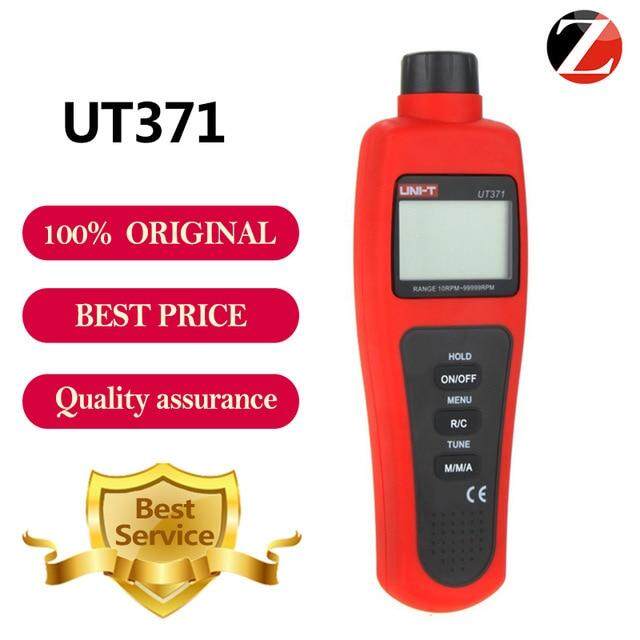

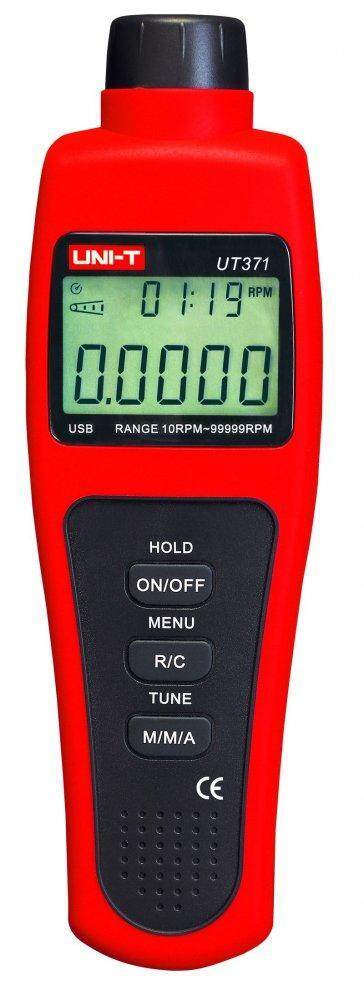

UNI-T UT371 Digital Non-Contact Tachometer

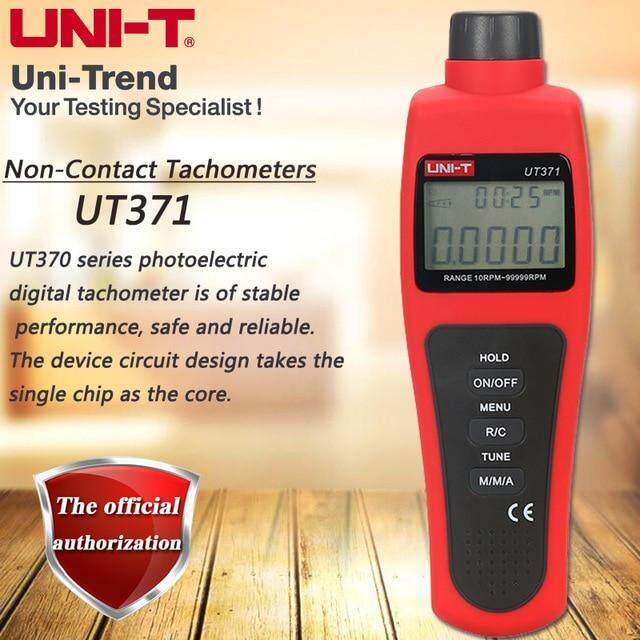

UNI-T’s UT371 is a non-contact tachometer with ranges of 10RPM~99999RPM and 0~99999 counts. It can continuously work for 40hrs with clear LCD display.UT370 series photoelectric digital tachometer is of stable performance, safe and reliable. The device circuit design takes the single chip as the core. The photo electricrevolvingspeedsampling & processing and unique appearance design make the device become the tachometer with excellent performance. The tachometer can be used for revolving speed measurement and count. The revolving speed range is from 10 to 99999 r/min. The count range is 0～99999. It is applicable to school, factory, environmental protection agency, lab, research institution and automobile maintenance testing and so on.

Features

• 5 digit LCD screen, RPM/count and time dual display
• MAX/MIN/AVG/normal modes
• Adjustable sampling rate (0.5-255s)
• Auto power off (cancelable)

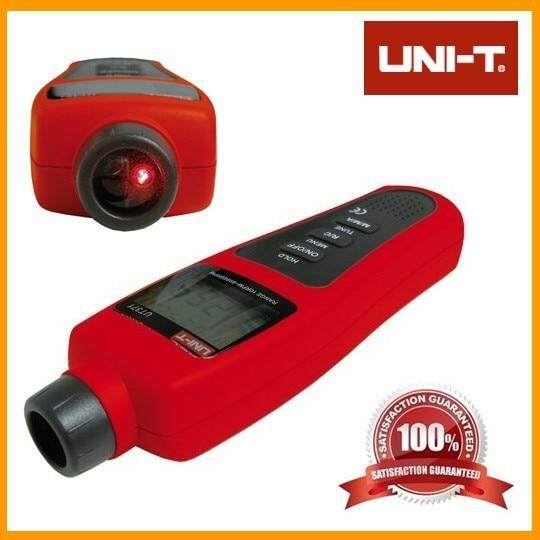

• Optional (on/off) laser pointer
• Clock and time setting
• Data hold, low power consumption, continuous work for 40hrs

SPECIFICATION:

• Measurement: 10 to 99.999 RPM
• Range selection: 10 to 99 RPM, 100 to 999 RPM, 1000 to 9999 RPM, 10000 to 99999 RPM
• Accuracy: 0.04% +/- 2dgt
• Display: 99999
• Target distance: 50 mm to 200 mm
• Start/Hold: Start and Stop measurement, Data Hold
• Max./min./ave/zero: maximum value, minimum value, average value, zeroing
• Sleep Mode: around 15 minutes
• Low battery display: 4.8 V

GENERAL CHARACTERISTICS:

• Power: 1.5V baterie (AA) x 4
• LCD size: 53 x 41 mm
• Product size: 184 x 56 x 34 mm
• Product weight: 100 g

Package Contain:

• 1 xUNI-T UT371 Digital Non-Contact Tachometer
• 1 x Batteries
• 1 x Reflecting
