UNI-T UTG1010Ais a high quality bench-top DDS/arbitrary waveform generator with a large full-colour screen. It is capable of generating multiple waveform types, including square, sine, ramp, triangle, pulse, noise, DC and arb. It uses output frequency of 10 MHz, frequency resolution of 1 μHz and has vertical resolution of 14 bits. The UTG1010A also features multiple modulation types which are AM, FM, PM, ASK, FSK, PWM.

Built-in USB interface allows the device to be connected up to a PC or other similar device via the included USB cable.

Features

• Generates multiple waveform types including sine, square, ramp, triangle, pulse, noise, DC and Arb.
• Sample rate of 125 MSa/s.
• Output frequency of 10 MHz.
• Frequency resolution of 1 μHz.
• Vertical resolution of 14 bits.
• Output amplitude range 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 Vpp (1 MΩ).
• Multiple modulation types: AM, FM, PM, ASK, FSK, PWM.
• USB device, USB host and LAN interfaces.
• 4.3 inch 64 K colour TFT LCD screen.
• Complies with EN 61010-1 and CAT III 300V.

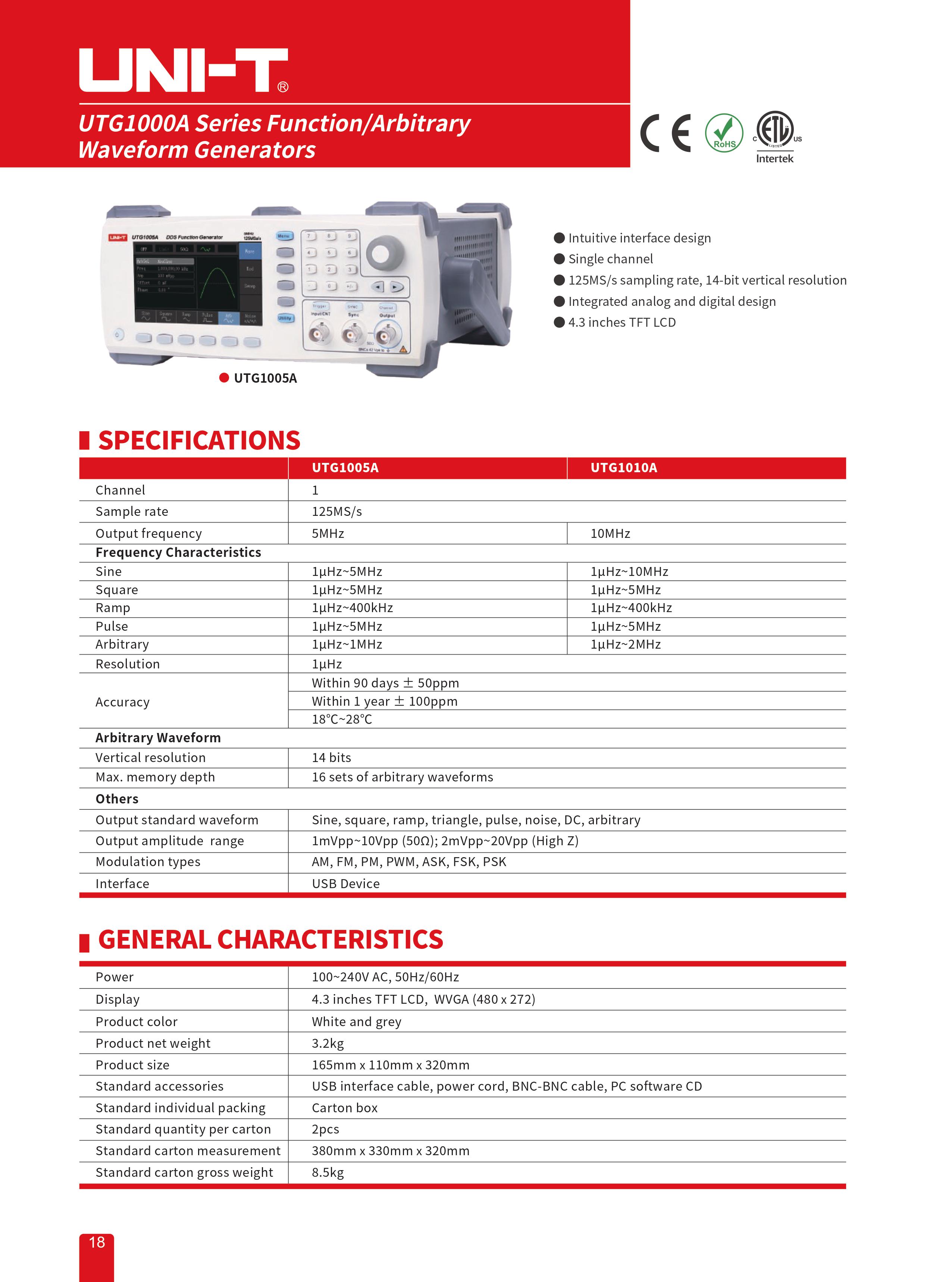

Technical Specifications

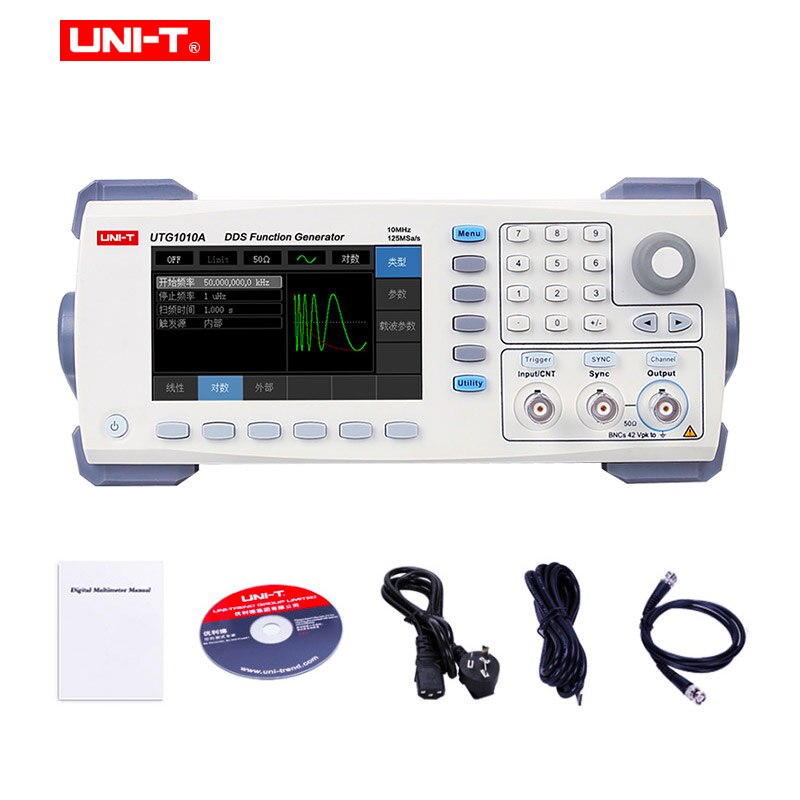

Package Contents

• DDS/Arbitrary Waveform Generator UNI-T UTG1010A — 1 pc.
• BNC Cable — 1 pc.
• USB Cable — 1 pc.
• Power Cord — 1 pc.

Function / waveform generator channels:

• Single channel

Function / waveform generator Max. signal frequency:

• 10 MHz
